Specification of CCTV HIKVISION DS-2DE4225W PTZ
CCTV PTZ

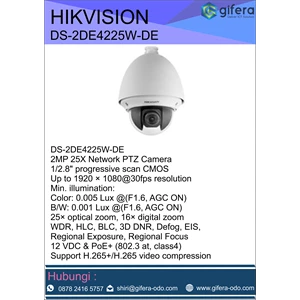

DS-2DE4225W-DE
2MP 25X Network PTZ Camera
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination:
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- 12 VDC & PoE+ (802.3 at, class4)
- Support H.265+/H.265 video compression
Camera Image Sensor: 1/2.8" Progressive Scan CMOS Effective Pixels: 1920(H)x1080(V) Signal System: PAL/NTSC Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp AGC: Auto/Manual BLC: ON/OFF HLC: Support WDR: 120dB Shutter Time: 50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s Day& Night: ICR Digital Zoom: 16X Privacy Mask: 24 programmable privacy masks Auto Focus: Auto / Semi-automatic / Manual Lens Focal Length: 4.8 mm to 120 mm, 25× optical zoom Zoom Speed: Approx. 3.6 s (optical lens, wide-tele) Field of View: Horizontal field of view: 57.6° to 2.5° (Wide-Tele)
Vertical field of view: 34.4° to 1.4° (Wide-Tele)
Diagonal field of view: 64.5° to 2.9° (Wide-Tele) Minimum Working Distance: 10 mm to 1500 mm (wide-tele) Aperture Range: F1.6 to F3.5 Pan & Tilt Pan Range: 360°endless Pan Speed: Configurable, from 0.1°/s to 160°/s,
Preset speed: 160°/s
Tilt Range: 0° to 90° (Auto-flip) Tilt Speed: Configurable, from 0.1°/s to 120°/s
Preset Speed: 120°/s
Number of Preset: 300 Patrol: 8 patrols, up to 32 presets per patrol Pattern: 4 pattern scans, record time over 10 minutes for each scan Power-off Memory: Support Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan PTZ Position Display: ON/OFF Alarm Alarm Input: 1 Alarm Output: 1 Input & Output Audio Input: 1-ch audio input Audio Output: 1-ch audio output Network Ethernet: 1 RJ45 self-adaptive 10 M/100 M Ethernet Interface Max.Image Resolution: 1920×1080 Main Stream: 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) Sub Stream: 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) Third Stream: 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG ROI encoding: Main stream, sub-stream, and third stream respectively support four fixed areas. Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Simultaneous Live View: Up to 20 channels Three-Stream: Support Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR User/Host: Up to 32 users, 3 levels: Administrator, Operator and User Security Measures: User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering Client GUI Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect Web Browser: IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+ General Language: 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) Power Supply: 12VDC, PoE+ Power Consumption: Max.: 18 W Working Temperature/Humidity: -30°C to 65°C (-22°F to 149°F) Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection Material: ADC 12, PC+ABS, PC/PMMA Dimensions: Φ 180 mm × 239.5 mm (Φ 7.09" × 9.43") Weight (approx.): Approx. 2 kg (4.41 lb)
